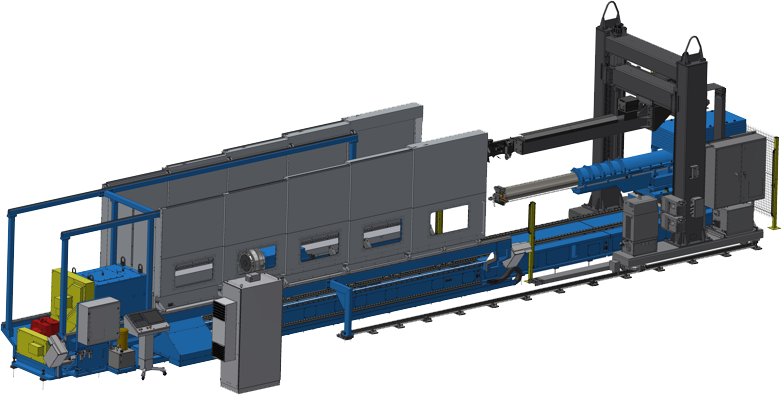

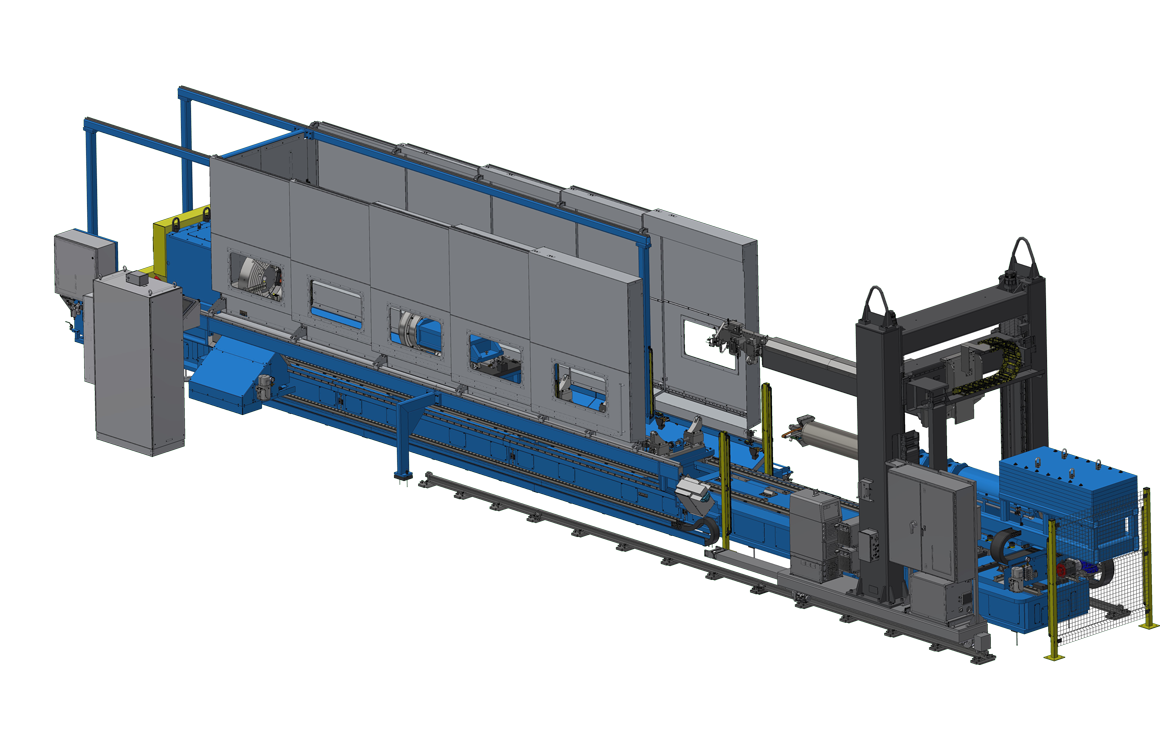

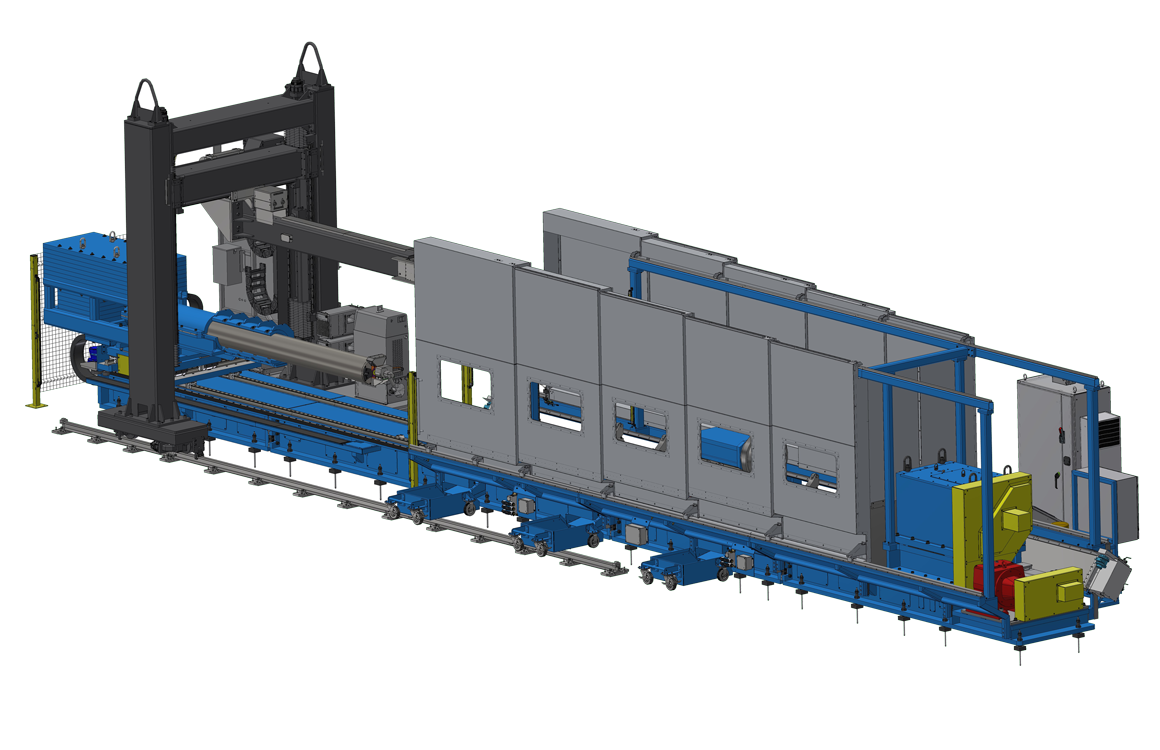

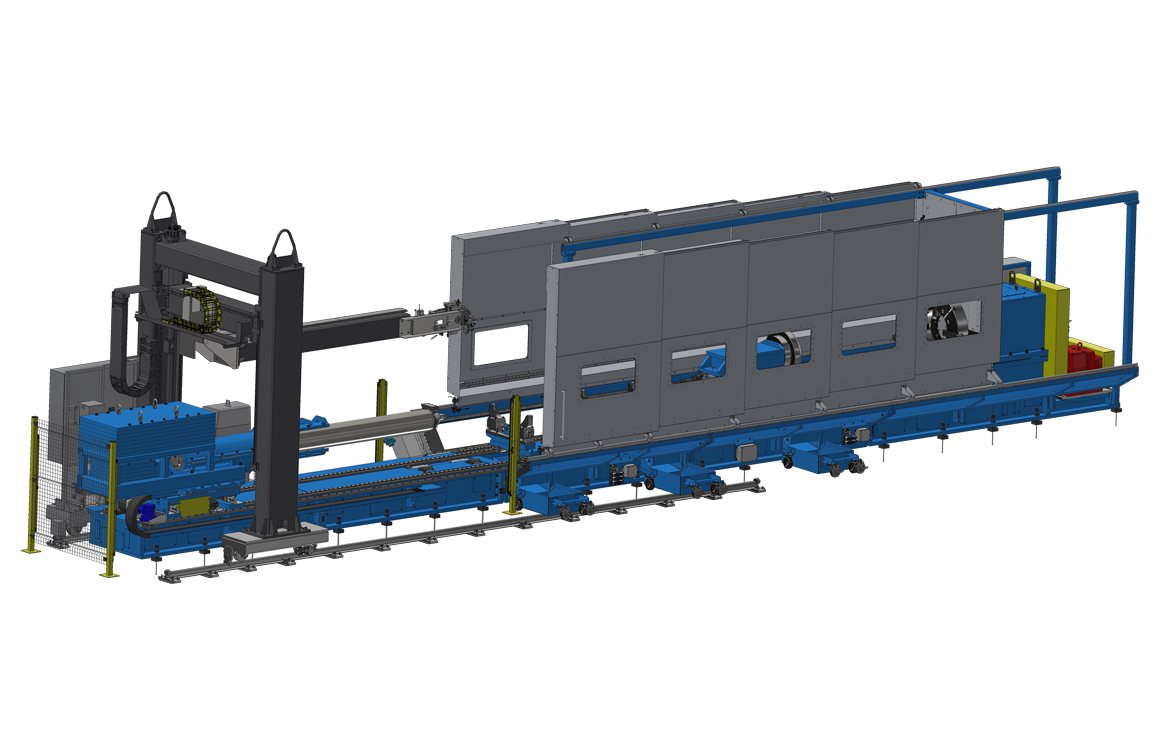

TitanTurn
Welding & Machining Lathe Cell
Integrated OD/ID Welding + Precision Machining in One Complete System
Machine Overview:
The TitanTurn is a fully integrated solution designed to streamline large-part production by combining welding and machining operations into a single, efficient workflow.
This system is purpose-built to handle demanding applications requiring OD/ID welding, turning, boring, and finishing operations, all within one coordinated platform. By integrating welding automation with precision machining, manufacturers can significantly reduce handling time, improve accuracy, and increase throughput.

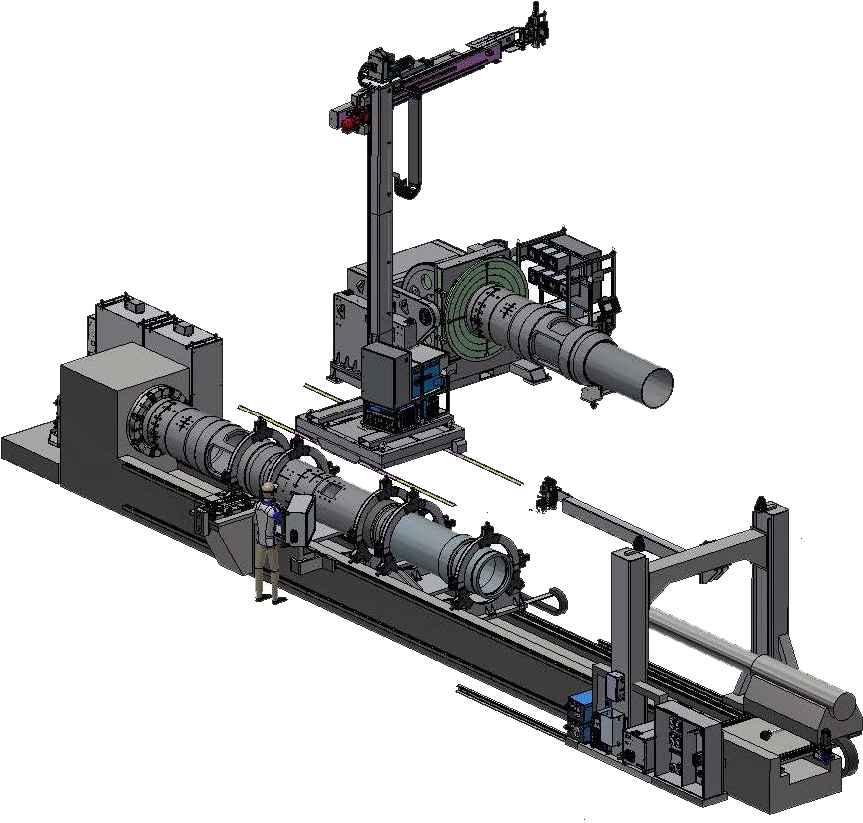

The system includes a heavy-duty welding lathe, automated welding stations, and precision machining capabilities, all engineered to work together seamlessly.
TitanTURN Specifications:
Capacities
- Swing over bed: 40” min
- Swing over cross slide: 36” min
- OD turning diameters: Ø25”-Ø31”
- ID boring diameters: Ø22”-Ø24”
- Bed length: 45’ min
- Chucking diameter: Ø25”-Ø27”
- Distance between centers: 25’ max
- Workpiece weight: 20,000 lbs min
Machine Features
- Non-CNC controlled
- Three (3) carriages
- Five (5) steady rests
- Ability to mount Ø300mm low deflection boring bar capable of boring to a depth of 103”
- Laser alignment feature to ensure key elements of each tube segment are clocked appropriately
- Turning speed: 6-35 RPM
- Welding speed: 0.12-0.15 RPM
Welding Systems
- 4.5V x 2TC & APP5000Z OD Weld Positioner Station
- 4.5V x 2TC with Cantilevered Boom ID Machine Tool Station
